Ubiquiti UAP-AC-IW UniFi In-Wall 2.4 / 5GHz AC Access Point | UAP-AC-IW

The Ubiquiti UniFi UAP-AC-IW is a compact, high-performance in-wall Wi-Fi access point designed to deliver fast, reliable wireless connectivity while blending seamlessly into modern interiors. Ideal for hotels, offices, classrooms, and residential deployments, it replaces a standard wall outlet to provide powerful dual-band Wi-Fi and additional Ethernet connectivity—all managed through the UniFi Controller.

High-Speed Dual-Band Wi-Fi

• 802.11ac MIMO technology delivers fast, stable wireless performance

• Dual-band operation on 2.4 GHz and 5 GHz

• Supports speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz

• Coverage range up to 328 ft (100 m) in open areas

In-Wall Design with Built-In Switching

• Discreet single-gang wall-mount design for clean installations

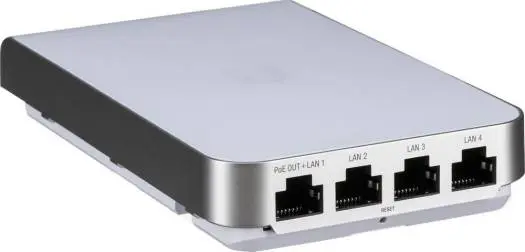

• 3 × Gigabit Ethernet ports for wired devices such as IP phones, TVs, or desktops

• Ideal for rooms that require both wired and wireless connectivity

Centralized UniFi Management

• Managed using the UniFi Controller (software-based, no license fees)

• Deploy on PC, Mac, Linux, on-premises, or in the cloud

• Centralized provisioning, monitoring, analytics, and firmware updates

• Scale from a single AP to thousands of access points under one controller

Guest Portal & Advanced Networking

• Built-in guest portal and hotspot functionality

• Supports voucher-based access, bandwidth limits, usage duration, and data caps

• VLAN support (802.1Q), per-user rate limiting, and guest traffic isolation

• Advanced QoS for voice, video, and data prioritization

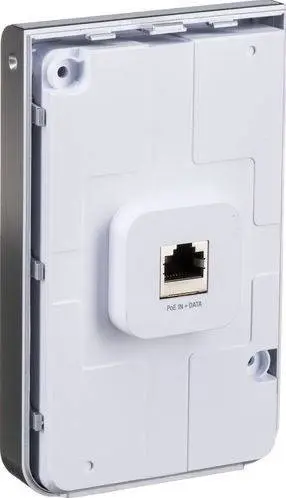

Power over Ethernet (PoE)

• Powered via 802.3at PoE (48V) for simplified installation

• Power and data delivered over a single Ethernet cable

• Supports PoE pass-through to power downstream devices

• Low power consumption of up to 7W

Enterprise-Grade Performance

• Supports 250+ concurrent clients

• Up to 4 BSSIDs per radio

• Strong wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• Designed for continuous operation in demanding environments

Key Specifications

• Wi-Fi Standards: 802.11 a/b/g/n/ac

• Maximum TX Power: 20 dBm (2.4 GHz / 5 GHz)

• Antennas: Internal dual-band (2.4 GHz: 1 dBi, 5 GHz: 2 dBi)

• Ports: 3 × 10/100/1000 Mbps Ethernet

• Operating Temperature: -10°C to 55°C

• Certifications: CE, FCC, IC
