Product Description

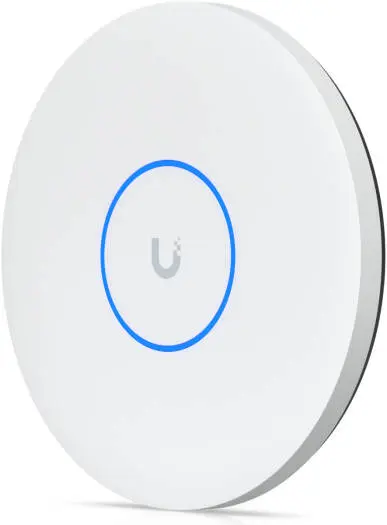

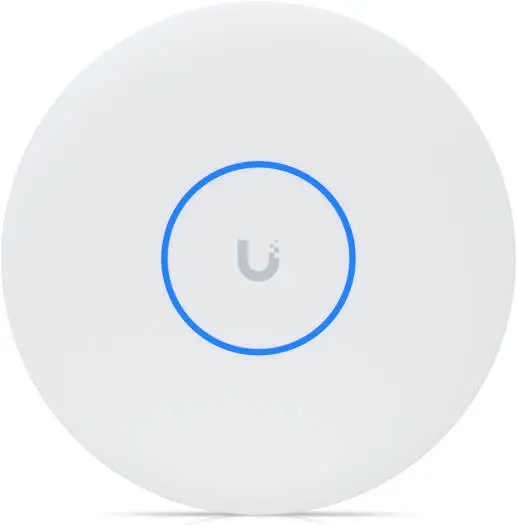

Ubiquiti UniFi U7 Pro XG WiFi 7 Tri-Band Access Point – 10GbE Uplink
Model: U7-Pro-XG
The UniFi U7 Pro XG is a next-generation WiFi 7 tri-band access point designed for high-density, high-performance networks that demand multi-gigabit wireless speeds and a true 10GbE wired uplink. With 6 spatial streams, 2x2 MU-MIMO on each band, and ultra-wide 320 MHz channels, it delivers exceptional capacity, low latency, and rock-solid reliability for modern enterprise environments.
Key Features
WiFi 7 (802.11be) Tri-Band Access Point
10 GbE RJ45 Uplink (10/5/2.5/1 GbE Compatible)
6 Spatial Streams (2x2 MU-MIMO per Band)
Up to 5.8 Gbps on 6 GHz Band
Supports 300+ Concurrent Clients
PoE+ Powered
Ceiling & Wall Mount Design (Lite Mount Included)
Enterprise-Grade Security & Guest Management
Centralized Management via UniFi Network
Ultra-Fast WiFi 7 Performance
The U7 Pro XG is engineered for demanding environments where speed and capacity matter:
6 GHz Band:
2x2 MU-MIMO
Up to 5.8 Gbps (BW320)
5 GHz Band:
2x2 MU-MIMO
Up to 4.3 Gbps (BW240)
2.4 GHz Band:
2x2 MU-MIMO
Up to 688 Mbps (BW40)
Supports EHT 20/40/80/160/240/320 MHz channel widths for maximum throughput and low-latency connections.
True 10GbE Uplink for Bottleneck-Free Networks
1 × 10 GbE RJ45 uplink
Backward compatible with 5G / 2.5G / 1G
Ideal for WiFi 7 backhaul, multi-gig switches, and high-speed LAN cores
Enterprise-Grade Wireless Features
Wireless meshing & band steering
Fast roaming (802.11k / v / r)
Advanced radio management
Guest network isolation
Captive portal (branding, vouchers, payments, external portals)
PPSK, speed limits & client isolation
Dynamic VLAN & RADIUS over TLS (RadSec)
Passpoint (Hotspot 2.0) support
Designed for Modern Deployments

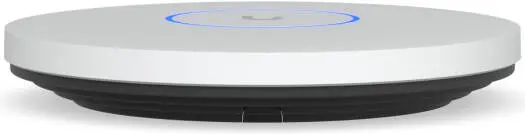

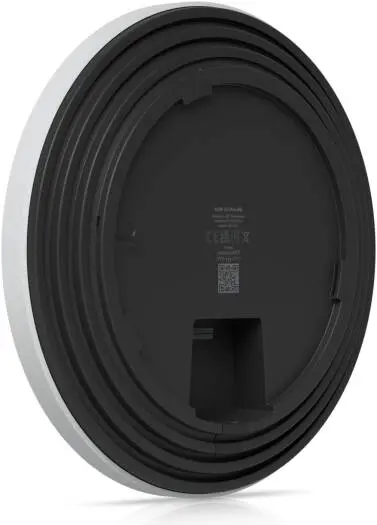

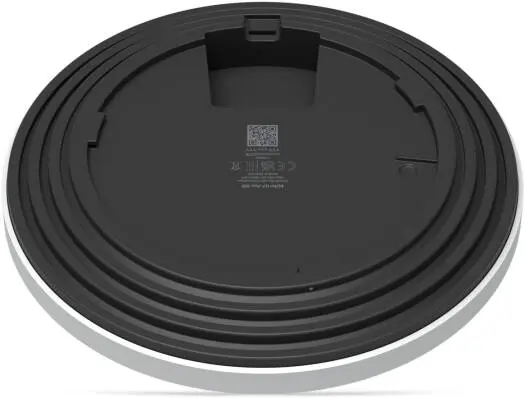

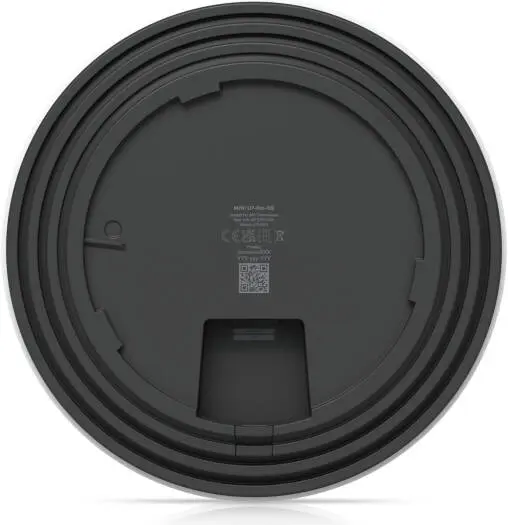

Clean ceiling or wall-mounted design
Durable UV-stabilized polycarbonate & aluminum alloy enclosure
Suitable for offices, campuses, hotels, retail, and enterprise floors
Coverage Area: up to 140 m² (1,500 ft²)
Technical Specifications
Wireless
WiFi Standard: WiFi 7 (802.11be)
Spatial Streams: 6
Max Clients: 300+
Max BSSIDs: 8 per radio
Networking & Power
Uplink: 1 × 10 GbE RJ45
Power Method: PoE+
Max Power Consumption: 22W
Voltage Range: 42.5–57V DC
Mechanical
Dimensions: Ø206 × 32.5 mm
Weight: 750 g
Color: White
LEDs: System (White/Blue)
Environment
Operating Temperature: -30 to 40°C
Operating Humidity: 5–95% non-condensing
Certifications: CE, FCC, IC
NDAA Compliant
Software
Management: UniFi Network
Required Version: v9.0.114+
