Product Description

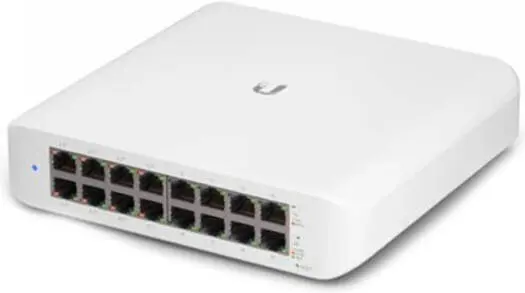

Ubiquiti UniFi USW-Lite-16-PoE | 16-Port Gigabit PoE+ Managed Switch
The Ubiquiti UniFi USW-Lite-16-PoE is a compact, cloud-managed Layer 2 Gigabit switch designed for small to medium UniFi networks. It provides 16 Gigabit Ethernet ports, including 8 PoE+ ports with a 45W total power budget, making it ideal for powering UniFi access points, IP cameras, VoIP phones, and other PoE devices.
With full integration into the UniFi Network Controller, this switch offers centralized management, real-time monitoring, and advanced Layer 2 features in a desktop-friendly and wall-mountable design.
Key Features

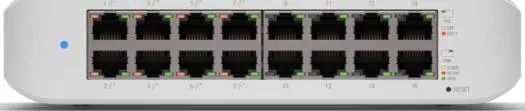

16 × Gigabit Ethernet RJ45 Ports
8 × Auto-Sensing PoE+ (802.3at) Ports
45W Total PoE Power Budget
16 Gbps Non-Blocking Throughput
32 Gbps Switching Capacity
Layer 2 Managed Switch
Desktop & Wall-Mountable Design
Managed via UniFi Network Controller & Mobile App
Includes Wall Mounting Kit
Efficient Power & Performance
The USW-Lite-16-PoE delivers reliable switching performance with:
16 Gbps non-blocking throughput
32 Gbps switching capacity
Up to 30W PoE+ per port, suitable for most UniFi devices
Its 45W PoE budget allows flexible deployment of multiple powered devices without additional adapters.
Advanced Layer 2 Management
Fully managed through the UniFi Network Controller, the switch supports:
VLAN & Voice VLAN
Port Isolation & Port Mirroring
IGMP Snooping
STP / RSTP
LACP Link Aggregation
DHCP Snooping & Guarding
Jumbo Frames & Flow Control
802.1X Authentication
Configuration and monitoring can be done locally or remotely via web or mobile app.
Compact & Flexible Design
Desktop-friendly footprint

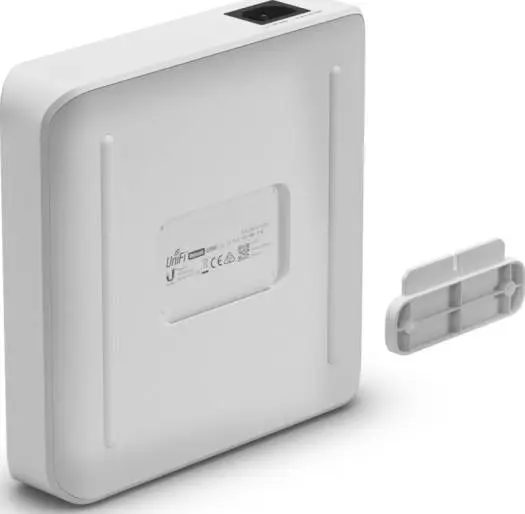

Wall-mountable (mounting kit included)
Durable polycarbonate enclosure
Silent, fanless operation
Designed for offices, retail stores, classrooms, and home labs
Technical Specifications
Mechanical
| Feature | Specification |
| Dimensions | 192 × 185 × 44 mm |
| Weight | 1.2 kg |
| Enclosure | Polycarbonate |
| Mounting | Desktop / Wall |
Networking & Performance
| Feature | Specification |
| Ethernet Ports | 16 × GbE RJ45 |
| PoE Ports | 8 × PoE / PoE+ |
| Switching Capacity | 32 Gbps |
| Non-Blocking Throughput | 16 Gbps |
Power & Environment
| Feature | Specification |
| Total PoE Budget | 45W |
| Max PoE per Port | 30W |

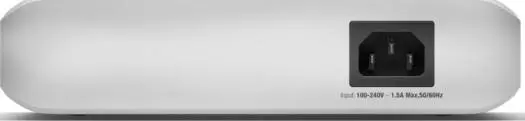

| Power Supply | Internal 60W AC/DC |
| Operating Temperature | -15°C to 40°C |
| Humidity | 10–90% Non-condensing |
