Product Description

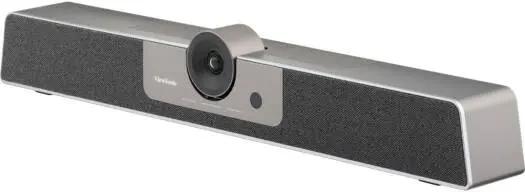

ViewSonic UMB202 TeamJoin™ 4K Video Bar System
4K Sony IMX577 Sensor | Auto-Framing & Voice Tracking | 6-Element Mic Array | 8m Pickup Range | Premium Dual-Speaker System | USB-C Connectivity | UMB202
Professional All-in-One 4K Collaboration System
The ViewSonic UMB202 TeamJoin™ 4K Video Bar System delivers a premium, all-in-one conferencing experience for Microsoft Teams Rooms and other leading collaboration platforms.
Featuring a Sony IMX577 4K CMOS sensor, AI-driven auto-framing, DOA (Direction of Arrival) voice tracking, and a 6-element beamforming microphone array, it ensures that every participant looks sharp and sounds crystal-clear.
Designed for medium to large meeting rooms, the UMB202 combines studio-quality video, noise-cancelled audio, and integrated speakers into one elegant, easy-to-install solution.
Key Features
4K Sony IMX577 Camera for Exceptional Clarity
Equipped with a 1/2.3” CMOS 12MP Sony sensor for lifelike, ultra-sharp visuals.
Supports multiple resolutions up to 3840×2160 (4K UHD) at 30FPS.
EPTZ with 5x digital zoom allows smooth pan, tilt, and zoom adjustments.
117.8° diagonal field of view (DFOV) ensures everyone is visible in wide conference setups.
AI-Powered Auto-Framing & Voice Tracking
Intelligent auto-framing automatically detects and centers participants in view.
DOA voice tracking pinpoints active speakers and dynamically adjusts framing.
Perfect for hybrid meetings where clarity and natural flow are essential.
6-Element Beamforming Microphone Array
Advanced 6-mic array with 8-meter pickup range captures voices clearly from across the room.
Digital noise cancellation (DNC) eliminates background interference for pristine voice clarity.
UAC 2.0 audio ensures plug-and-play compatibility across major conferencing apps.
Powerful Dual-Speaker Design
Integrated 1 mid-bass + 1 treble driver provide balanced sound output (8W + 3W).
Delivers up to 80 dBA @ 1m, ensuring everyone can hear clearly—even in larger rooms.
Designed for natural vocal tones and rich meeting audio.
Seamless USB-C Connectivity
Simple USB 3.0 Type-C connection (backward compatible with USB 2.0).
Supports MJPEG, H.264, NV12, and YUY2 compression formats for versatile setup.
Compatible with Windows, macOS, Chrome OS, and Android systems—no drivers required.
Specifications
| Category | Details |
| Camera Sensor | Sony IMX577 1/2.3” CMOS, 12MP |
| Resolution (H.264/MJPEG) | Up to 3840×2160 @30FPS |
| Resolution (NV12/YUY2) | Up to 1920×1080 @30FPS |
| Field of View | 117.8° (DFOV), 109° (HFOV), 74.4° (VFOV) |
| Zoom / PTZ | EPTZ, 5x digital zoom |
| Auto Features | Auto-framing, Voice tracking, White balance, Exposure |
| Microphone Array | 6-element, 8m pickup range |
| Speaker System | 1 × mid-bass + 1 × treble module |
| Speaker Output Power | 8W + 3W (11W total) |
| Max SPL | 80 dBA @ 1m |
| Noise Cancellation | Digital Noise Cancellation (DNC) |

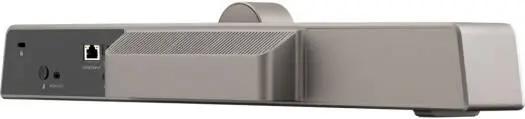

| Connectivity | USB Type-C, Audio Out, DC 2.0 Power, RJ45 (for power) |
| USB Type | USB 3.0 (compatible with USB 2.0) |
| Video Codec Support | MJPEG / H.264 / NV12 / YUY2 |
| Audio Codec | UAC2.0, 16K sampling rate |
| UVC Protocol | UVC 1.1 (supports PTZ control via remote) |
| Power Supply | IEEE 802.3 at (PoE+), 25.5W max |
| Control Buttons | Power, Mic Mute |
| Compatibility | Windows 7/8.1/10/11, macOS 10.10+, Chrome OS 29+, Android |
| Accessories (Included) | USB-C cable (1.8m) + Type-A adaptor, Power adapter, Wall mount kit, Remote control, Lens cover, Quick Start Guide |
| Certifications | CE, FCC, RoHS, WEEE compliant |
