Product Description

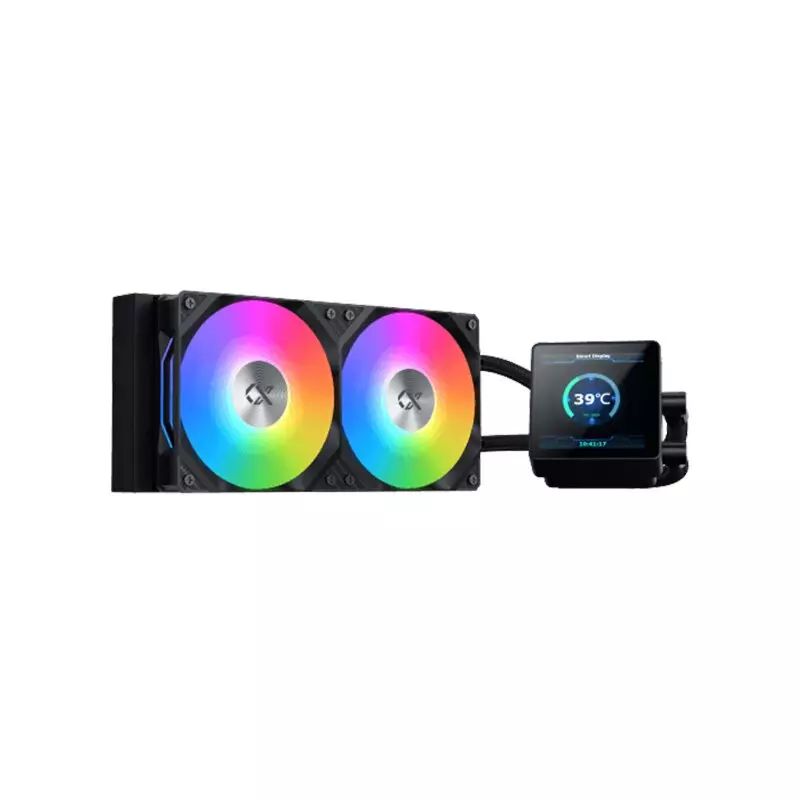

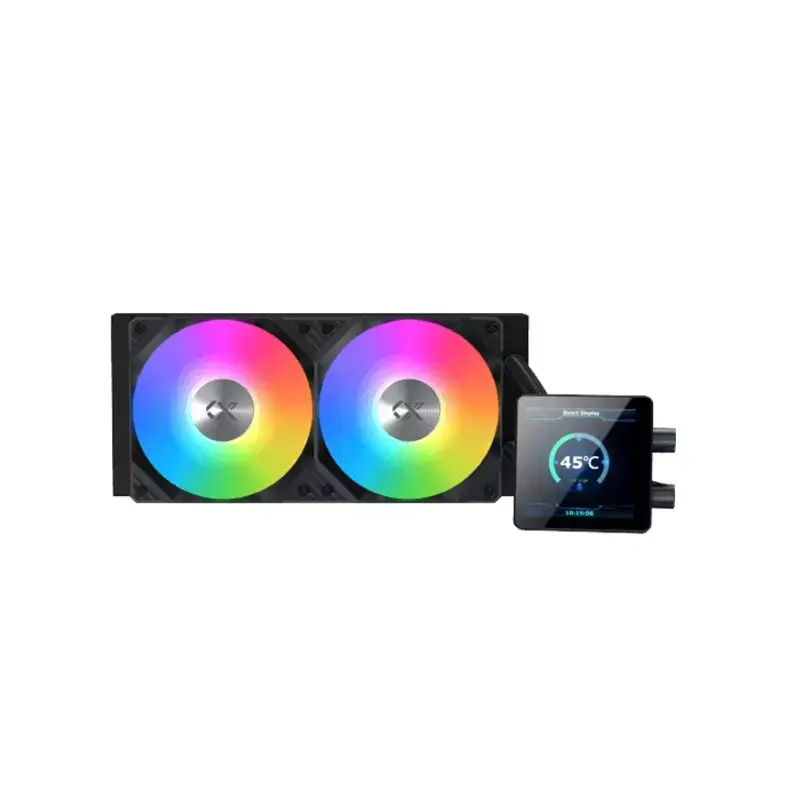

Xigmatek Connect 240 Smart LCD RGB CPU Liquid Cooler – Black | EN45257
The Xigmatek Connect 240 is a next-generation liquid CPU cooler featuring an advanced 3.4-inch Smart LCD screen, powerful cooling performance, and customizable RGB aesthetics. Engineered for high-end gaming PCs and performance workstations, it delivers exceptional thermal efficiency with real-time system monitoring through a fully customizable LCD display.
Equipped with a high-density 240mm radiator, premium ceramic-bearing pump, and dual high-pressure ARGB fans, the Connect 240 ensures cool, stable performance for even the most demanding CPUs—including Intel LGA 1851 and AMD AM5 platforms.
Key Features
3.4” Smart LCD Pump Head
Displays real-time system stats: CPU temp, GPU temp, clock speeds, usage, and more
Multiple animated themes and layouts included
Adjustable screen angle & brightness
Custom backgrounds supported for personalized aesthetics
Magnetic Rotating LCD Module
LCD display can rotate in four directions
Easy alignment regardless of cooler orientation
Simple magnetic attachment for effortless re-adjustment
High-Performance Cooling for Modern CPUs
Rated up to 280W TDP, ideal for high-end Intel & AMD CPUs
Ceramic bearing pump with 2700 RPM for strong coolant circulation
Dual 120mm ARGB fans with 80 CFM airflow and 3.14mm-H2O static pressure
Full ARGB Customization
ARGB fans with rainbow lighting
LCD and fan lighting controllable via software
Sync with motherboard ARGB headers
Specifications
| Category | Details |
| Product Name | Connect 240 |
| SKU | EN45257 |
| CPU Support | Intel LGA 1851/1700/1200/115X/20XX, AMD AM5/AM4 |
| Radiator Dimensions | 274 × 120 × 27 mm |
| Radiator Material | Aluminum |
| Tube Length | 400 mm (Black Sleeved Tube) |
| Pump Dimensions | 90 × 76 × 67 mm |
| Pump Bearing | Ceramic Bearing |
| Pump Speed | 2700 ±10% RPM |
| Pump Noise | ≤27 dBA |
| Pump Display | 3.4” Smart LCD Screen, adjustable angle |
| TDP Rating | 280W |
| Fan Dimensions | 120 × 120 × 28 mm ×2 |
| Fan Type | ARGB Rainbow Lighting |
| Fan Bearing | Long-Life Hydro Bearing |
| Fan RPM | 800–2100 ±10% RPM |
| Fan Airflow | 80 CFM (each) |
| Fan Pressure | 3.14 mm-H2O |
| Fan Noise | ≤29 dBA |
| Weight | 3 kg |
| Brand | XIGMATEK |
